Flux-Filled BGA Voids Can Remove Most of a Joint's Load Area
An assembly failed after mechanical testing, with suspected open BGA joints near the edge implicated by the electrical signature.
Fracture-surface examinationSEMEDSComparative joint mappingMechanical separation
What the evidence preview establishes

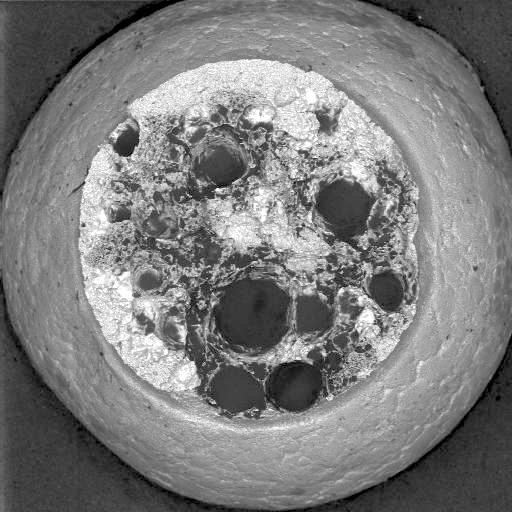

The likely joints failed through excessive flux-filled voids at the BGA ball interface. The voids removed more than half of the load-bearing area in some joints. Barium in trapped flux suggested a possible flux and solder-mask incompatibility. Minor black-pad evidence was a secondary concern.
Why this case matters
Evaluate BGA voids by lost load-bearing area, not only void count. If residue contains solder-mask constituents, test flux, mask, reflow, and outgassing compatibility while separately assessing ENIG integrity.
